Description

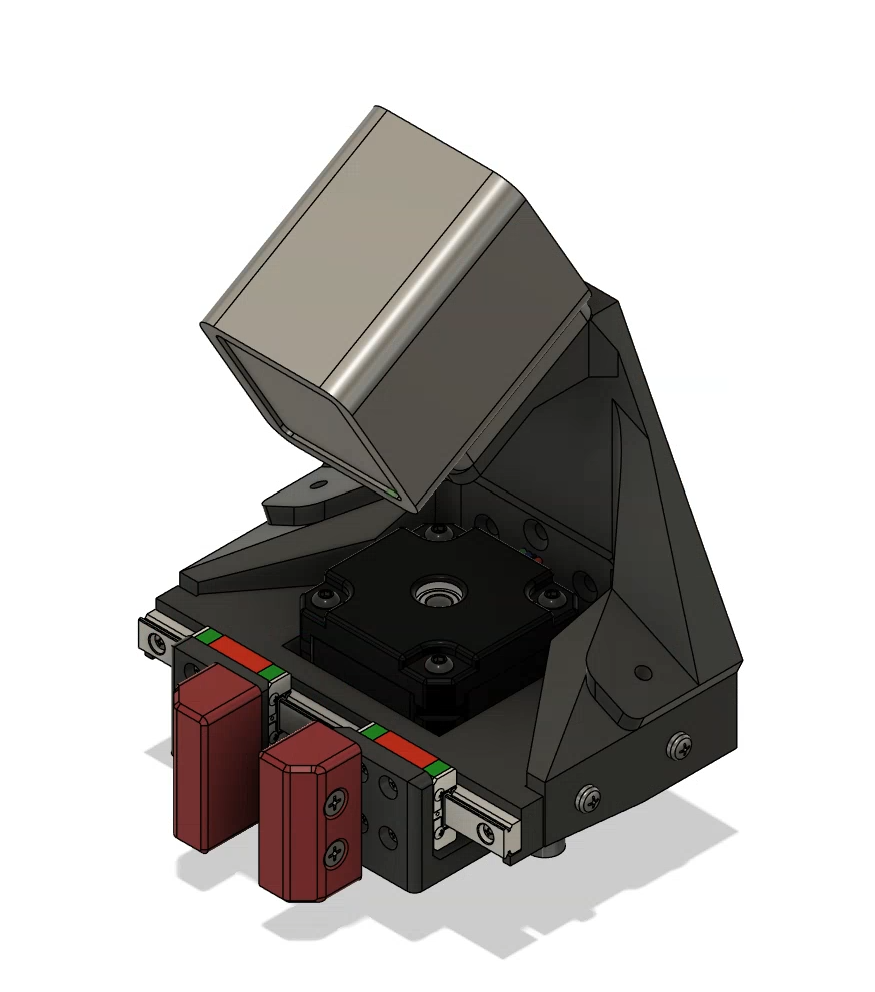

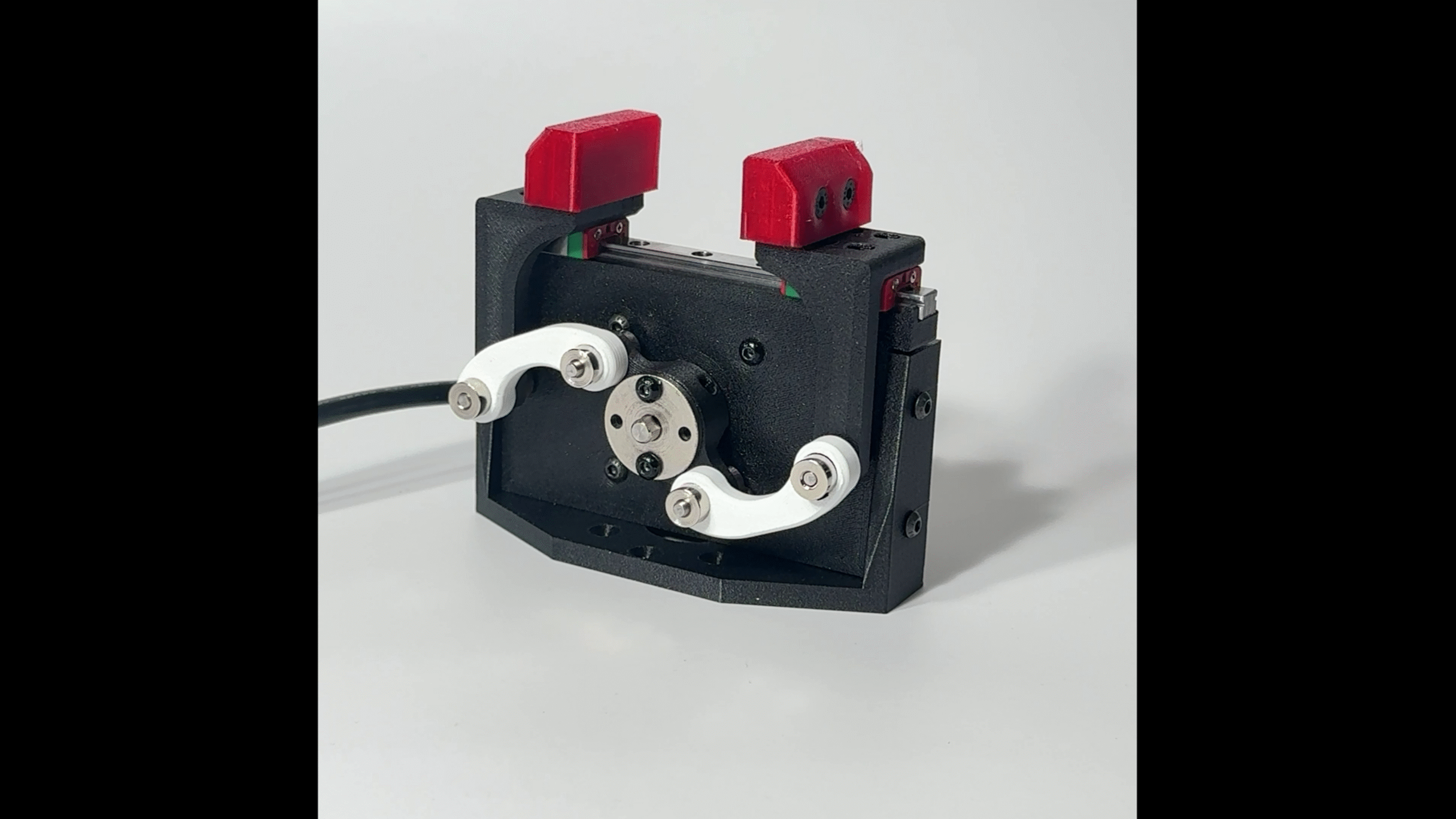

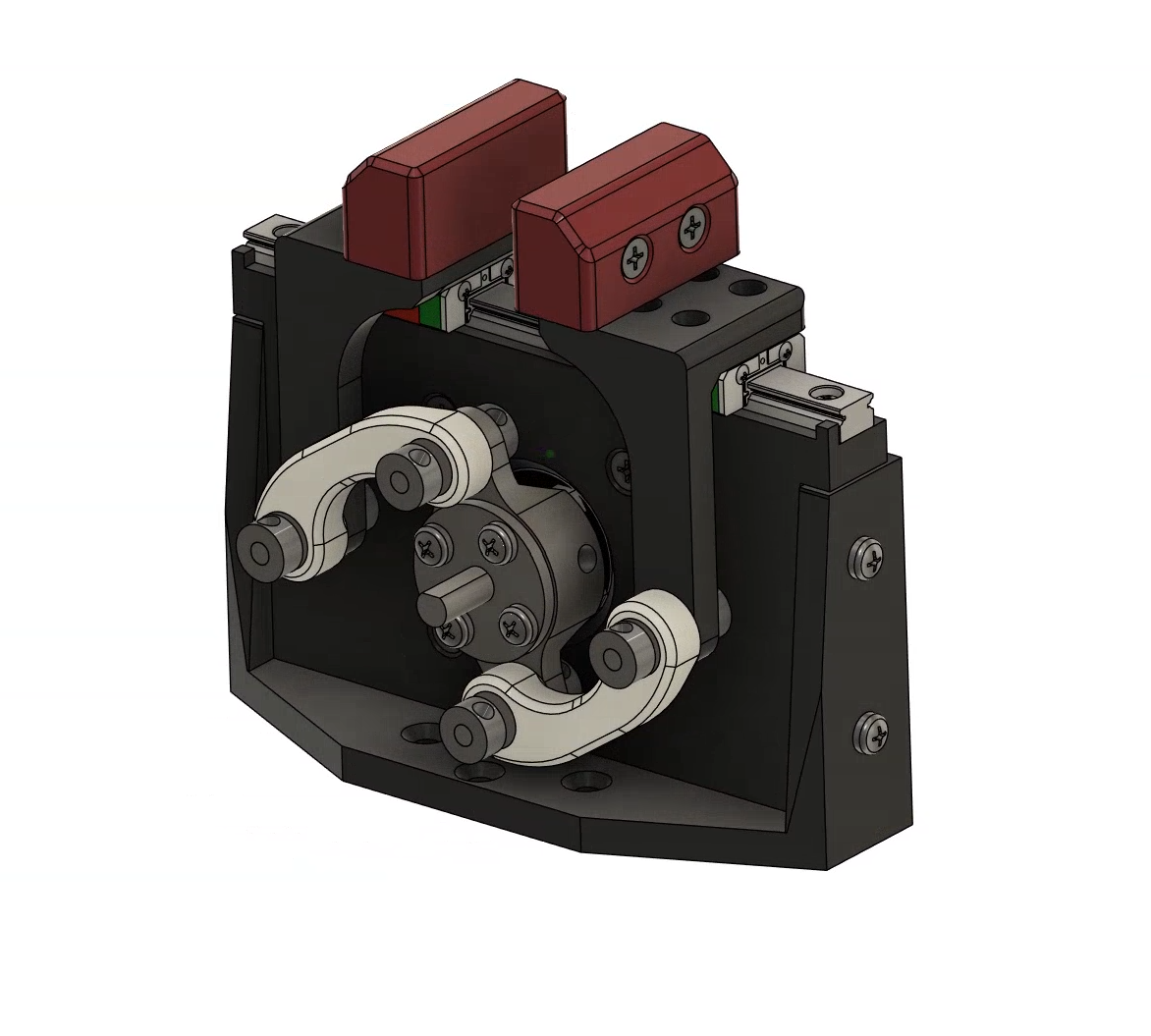

Files for a Parallel Gripper design.
Note: Members can download this and all other files for free!
Specs of the design
- 40mm opening
- Linear rails for smooth operation
- TPU fingers
- Fits a standard NEMA17 stepper motor
- Designed for 3D printing
What’s included
- 3D files in STEP format of the assembly
Bill of materials (BOM)
- NEMA17 stepper motor
- 3mm Bore shaft collar
- Ball Bearing 3x8x4mm
- MGN7-C Linear Slide Carriage Block
- MGN7 100mm Linear Sliding Rail
- M3 screws and Nuts
- M3 Threaded Heat Set Insert
- M2 Threaded Heat Set Insert
- M2 screws
- M3x20mm Dowel Pin
- Optional components
