Description
Wave Drive (with Intermediate Rolling Elements)
- Fits Nema17 stepper motor
- Reduction ratio: 21:1, 20:1, & 8:1
- Various designs included: 1-Phase, 2-Phase, for 3D printing, for CNC machining/Laser Cutting, Balls/Pins design.
- STL and STEP files
- Bill of Materials (BOM)
- Assembly instructions
If you are interested in a physical product instead, please fill out this form to show your interest: Wave Drive Kit
🔍 Overview

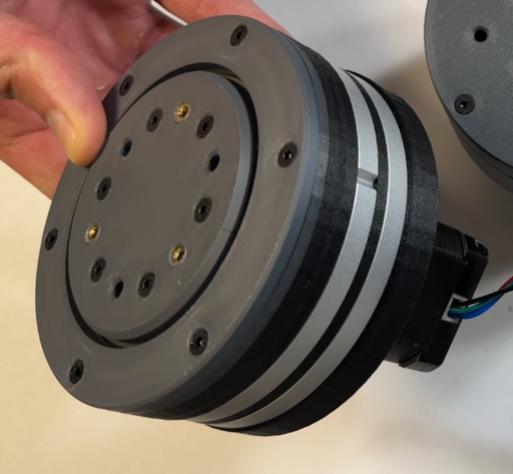

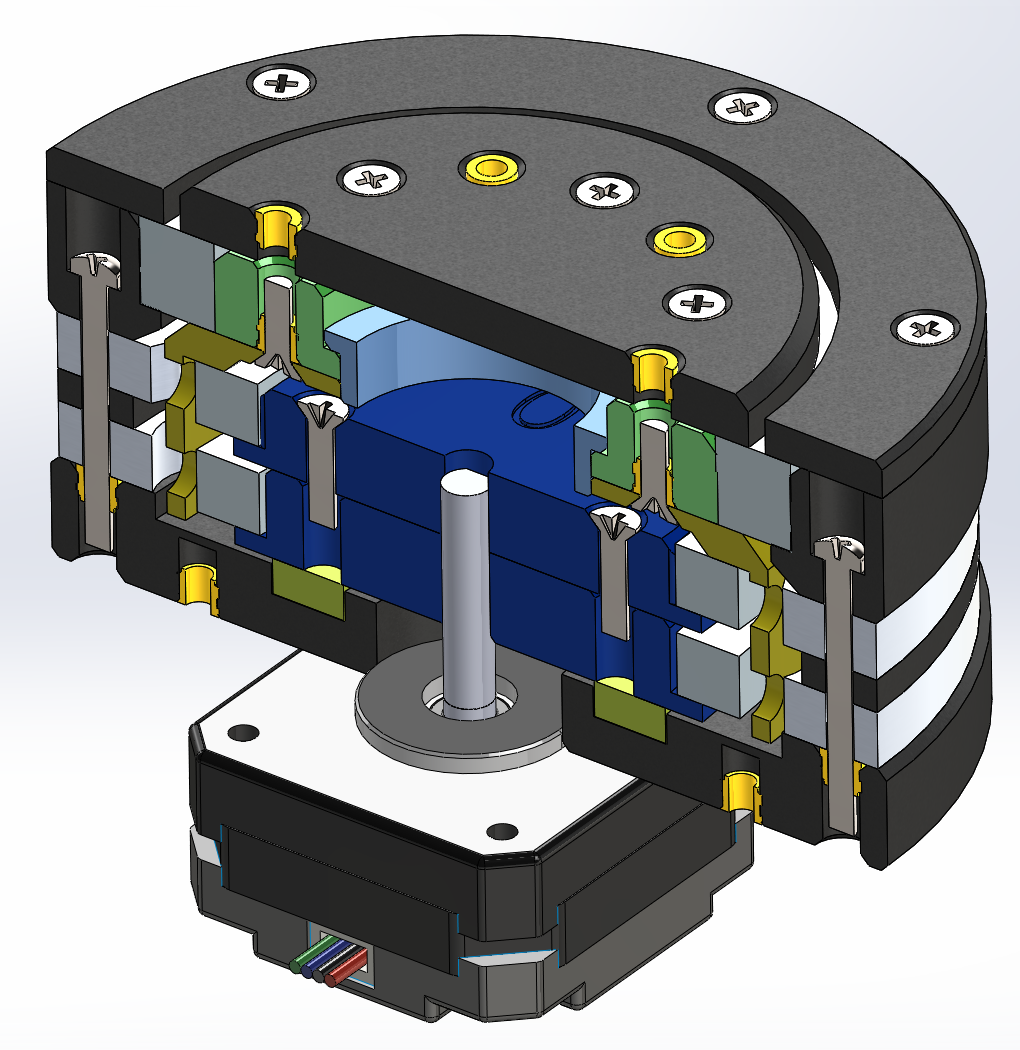

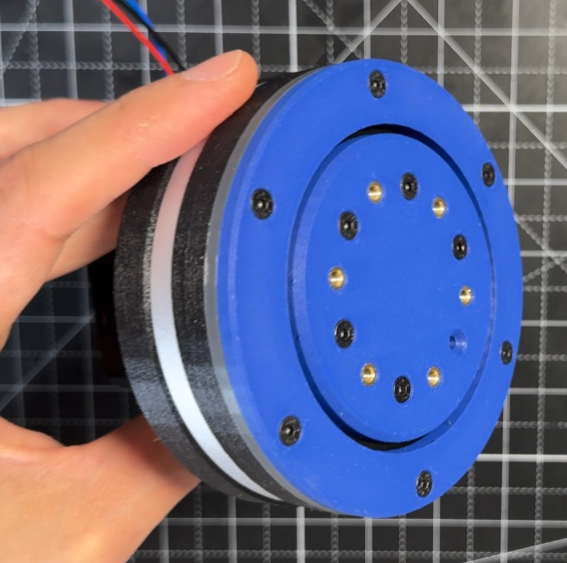

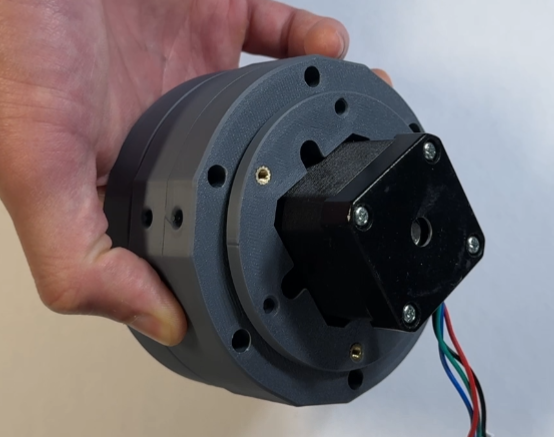

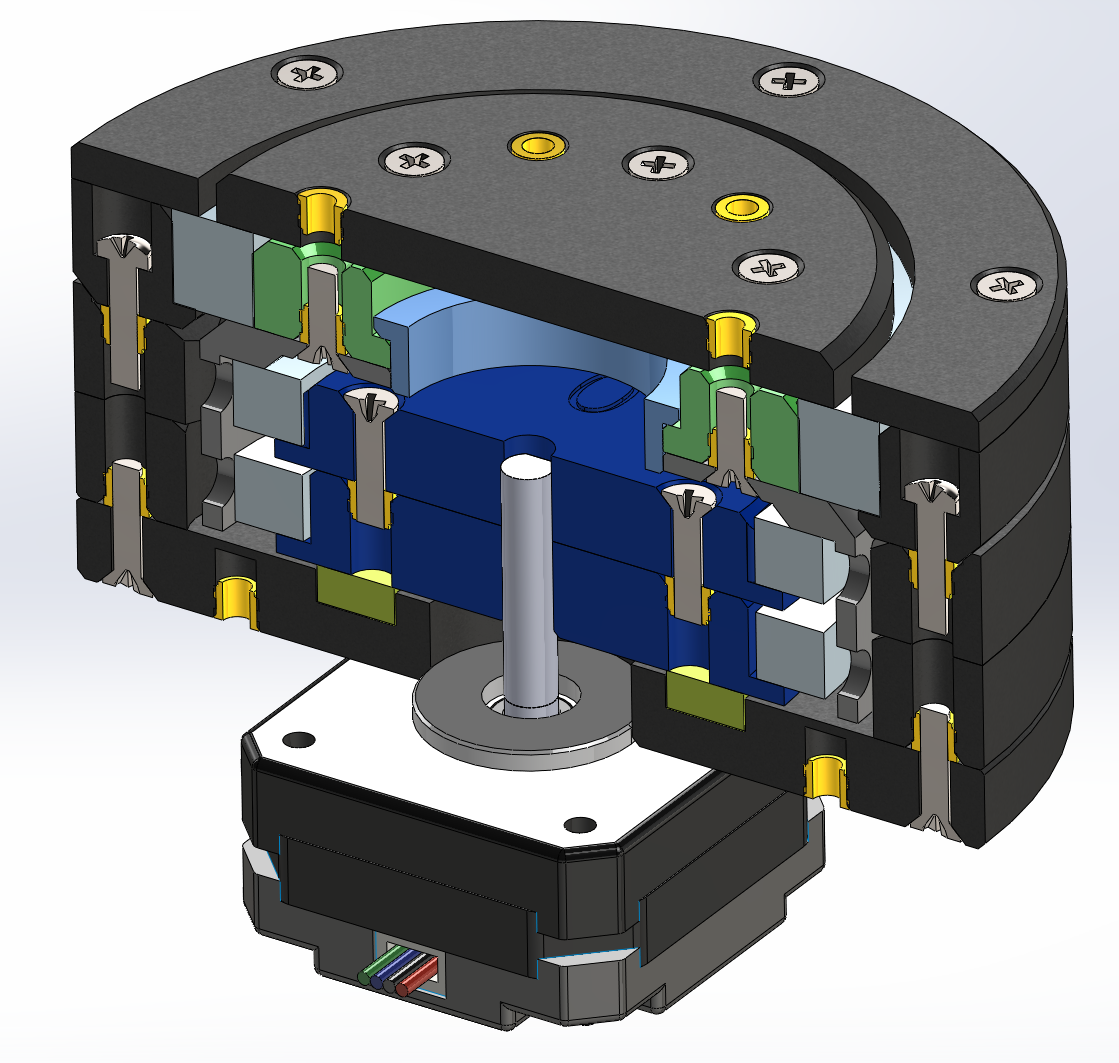

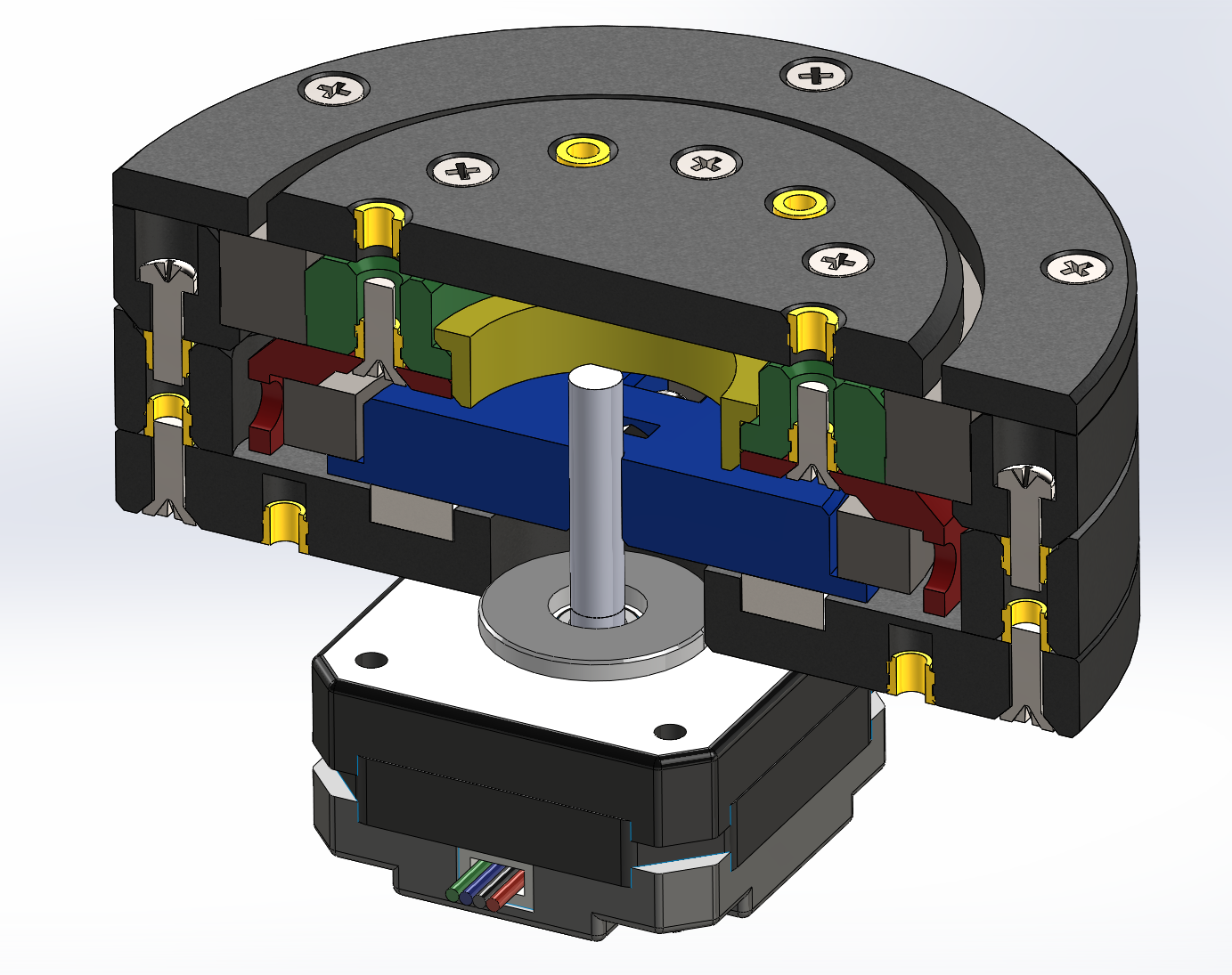

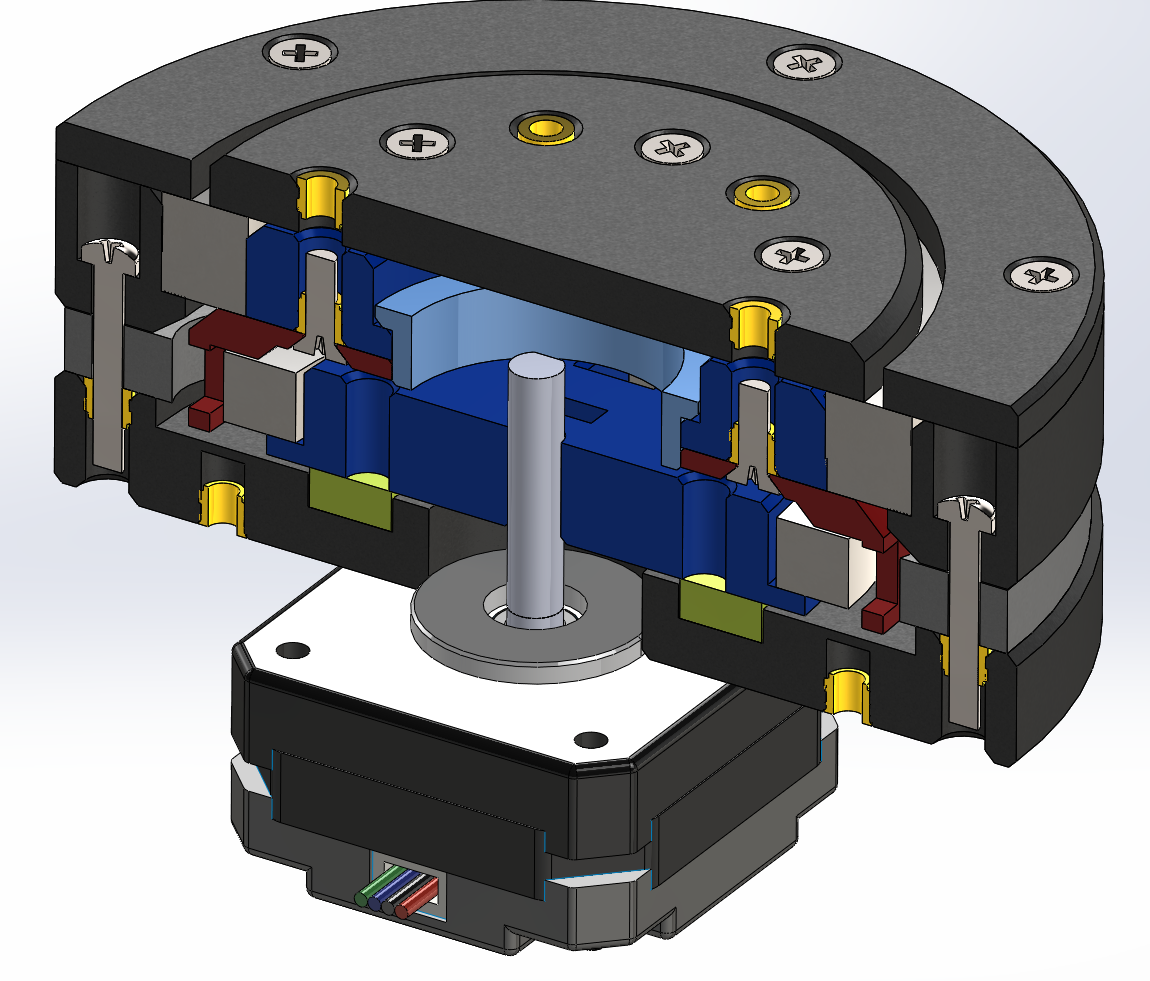

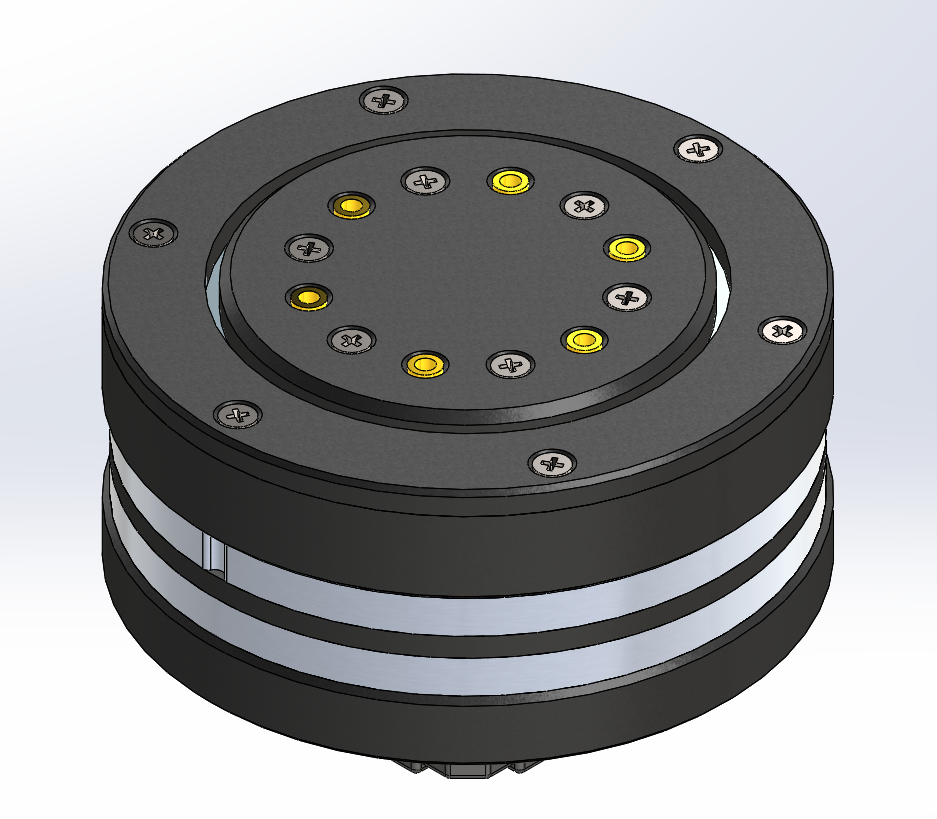

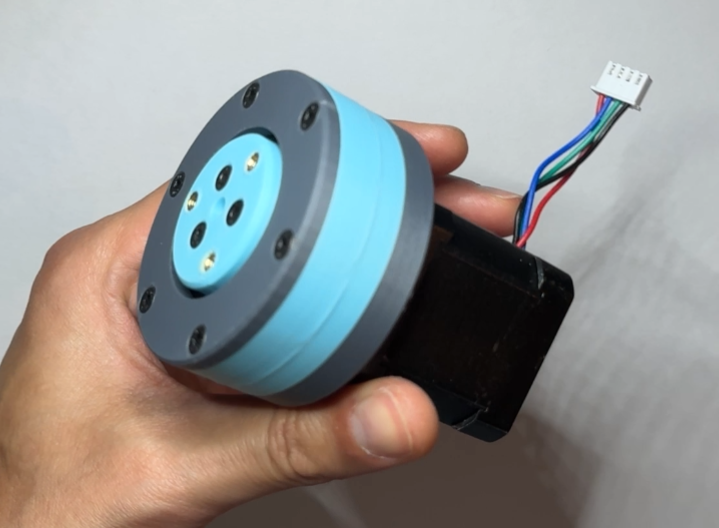

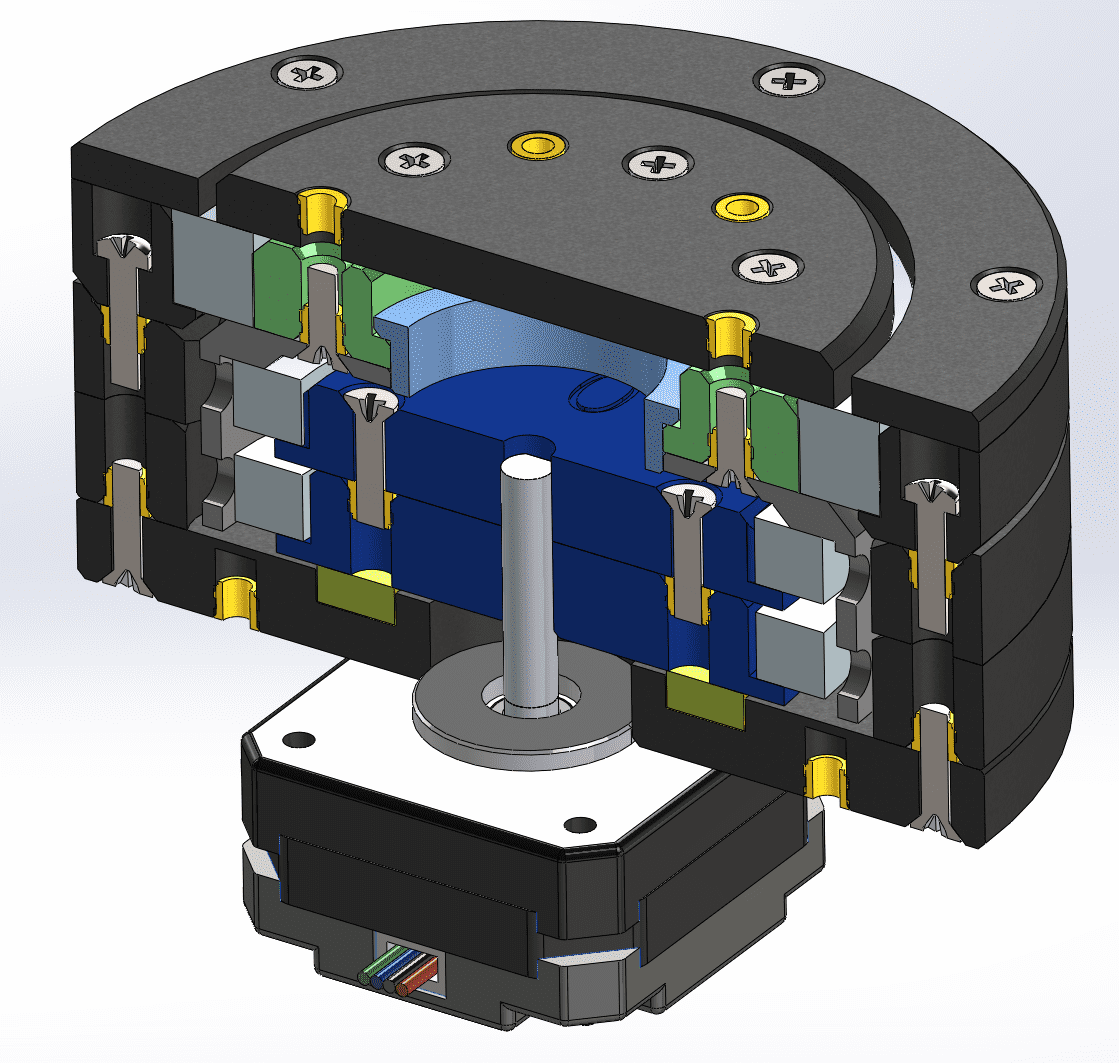

These are the design files for a wave drive for a standard NEMA17 stepper motor. Various designs are included, which can be either 3D printed or made in a CNC machine or laser cut.
For more details about each design, please check the following links:
⚠️ These files are sold as-is, with no warranty. Use at your own risk. No guarantee is made regarding fit, function, or suitability for your application. That said, I’ll do my best to assist with questions or issues if you reach out—your feedback helps improve future versions.
